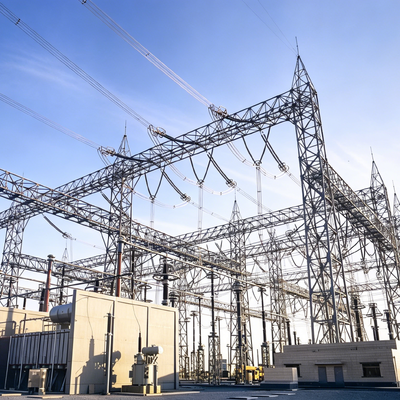

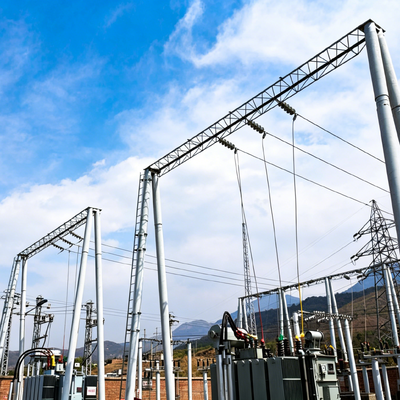

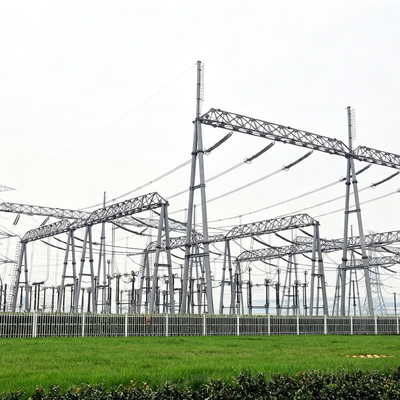

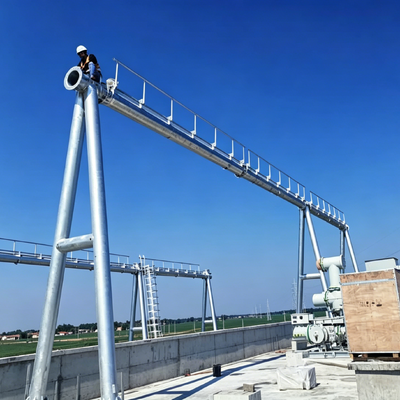

Power Structure lattice steel tower substation frame and connecting components for high voltage power transmission lines
| Place of Origin | Hebei,China |
|---|---|
| Brand Name | Kaijie |
| Certification | ISO9001,ISO14001 |
| Minimum Order Quantity | 5ton |
| Price | USD900-1500/Ton |
| Packaging Details | Steel Components Bundled with Steel Strips, Protected by Plastic Film or Woven Bags; Fasteners Packed in Wooden Crates. Suitable for Ocean/Sea Freight. |
| Delivery Time | 7-15 work days for samples, 30-45 work days for bulk orders |
| Payment Terms | T/T |
| Supply Ability | 2000 Ton / Month |
Product Details
| Surface Treatment | Hot Dip Galvanizing | Product Name | Power Structure / Electric Steel Structure |
|---|---|---|---|
| Service Life | More Than 30 Years | Type | Lattice Tower, Frame Structure, Beam, Cross Arm, Support |
| Application | Power Transmission, Substation, Power Grid, Distribution | Height | 10m-100m (customizable) |
| Wind Load | 30m/s – 70m/s | Seismic Resistance | Grade 8 Earthquake Resistance |
Product Description
Hot Dip Galvanized Steel Power Structure for Power Grid & Transmission Project
Power Structure (also called Electric Power Structure) refers to a complete set of steel components used in power transmission, substation and grid construction, including transmission tower, substation frame, cross arm, support beam, connecting components and other steel structures. Made of high strength angle steel and section steel, with hot dip galvanized anti-corrosion treatment, it features stable structure, strong load capacity and long service life, widely used in high voltage transmission lines, substation projects and power grid infrastructure.
Main Product Range
- Transmission Tower Structure: Lattice steel tower for high voltage overhead lines
- Substation Frame Structure: Support framework for transformer and electrical equipment
- Cross Arm & Support Components: Steel beam and support for line and equipment fixing
- Connection & Fitting Parts: High strength bolts, flanges, connecting nodes
- Custom Special Structure: Special support and framework for power project
Key attributes
| Type | Power Structure | Surface Treatment | Hot Dip Galvanizing |
| Brand Name | Kaijie | Product name | Power Structure |
| Place of Origin | Hebei,China | Material | Q235/Q355/Customizable |
| Height | 10m-100m (customized) | Wind speed | 30m/s – 70m/s |
| Service life | more than 30 years | Model Number | according to customer's requirements |
Technical Specifications
|
Product Advantages
- High Strength Material: Q355B low alloy high strength steel, strong bearing and anti-deformation
- Permanent Anti-corrosion: Overall hot-dip galvanized, rain/snow/humidity resistant, long outdoor life
- Stable & Safe Structure: Professional mechanical calculation, strong wind & seismic resistance
- Complete Specifications: Full range of components, meet transmission/substation/grid demands
- Easy Installation: Standardized components, bolt assembly, fast on-site construction
- Customizable Design: Custom size, structure and load according to project requirements
- Strict Quality Control: Full inspection from raw material to finished product, stable quality
Company Strength & Factory Display
We are a professional manufacturer of communication towers with more than 10 years of R&D, production and export experience. Our factory is located in Hengshui, Hebei, China, with a complete production line including laser cutting, cold bending forming, hot-dip galvanizing and other processes, with an annual production capacity of more than 10,000 tons.
Our products have passed ISO 9001, ISO 14001 and other international certifications, and have been exported to more than 30 countries and regions such as Southeast Asia, the Middle East, Africa and South America. We can provide complete export qualifications (customs declaration materials, certificate of origin, inspection report) and support OEM/ODM cooperation.
Inquiry Guidance
We welcome your inquiry! Please tell us your required height, material, wind speed, application scenario and other requirements, and we will provide you with a customized solution and competitive quotation within 24 hours. Customization is available to meet your specific project needs.
FAQ:
Q1: What is the brand name and place of origin of the Telecom Tower?
A1: The Telecom Tower is branded under Kaijie and is manufactured in Hebei, China.
Q2: What certifications does the Kaijie Telecom Tower have?
A2: Our Telecom Towers are certified with ISO9001 and ISO14001, ensuring high quality and environmental management standards.
Q3: What is the minimum order quantity and price range for the Telecom Tower?
A3: The minimum order quantity is 5 tons. The price ranges from USD 900 to 1500 per ton, depending on specifications and order volume.
Q4: How is the Telecom Tower packaged for shipping?
A4: The steel components are bundled by steel strips and wrapped with anti-rust film, while fasteners are packed in wooden cases. This packaging is suitable for sea freight.
Q5: What are the delivery times and payment terms for the Kaijie Telecom Tower?
A5: Sample orders typically take 7 to 15 days for delivery, while bulk orders require 30 to 45 days. Payment terms are T/T with 30% deposit and 70% against B/L copy, or L/C at sight.
